Midline Positioning Wheelchair

Request Quote
Request Demo

About the Midline Positioning Wheelchair

With the Midline Positioning Wheelchair, you can enjoy pressure-relieving comfort in a design that fits with your everyday life. Engage with your environment with specialty tilt, relax with adjustable back recline, and regain your independence with easy maneuverability. Configure the Midline to meet your unique needs. We offer many packages and accessories to help you to achieve your mobility goals.

Features:

  • Unique Comfort Tension Seating® system provides pressure redistribution and airflow for increased comfort and support

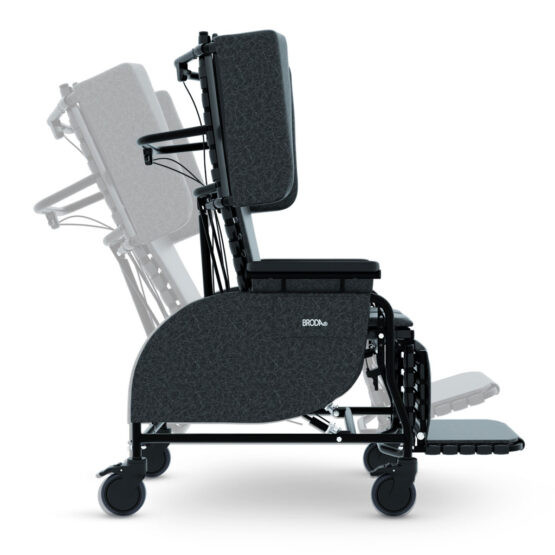

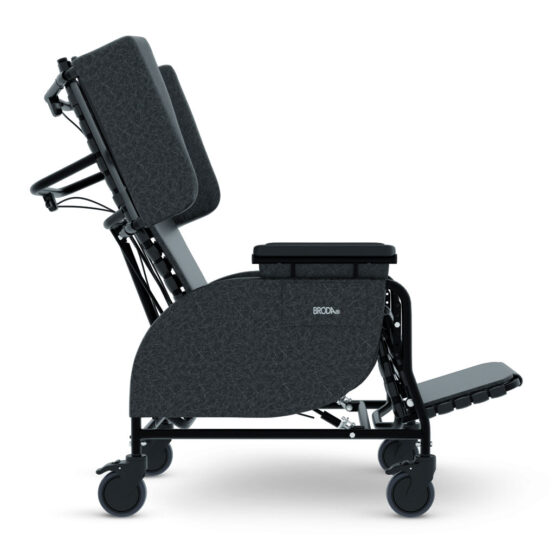

  • Tilt and recline offer safe positioning without the use of restraints, including Trendelenburg Position
  • Height-adjustable arms provide a custom fit
  • Adjustable, removable lateral shoulder supports provide exceptional positioning
  • Flip-down foot supports with angle-adjustable footplates
  • The 16-gauge, powder-coated, tubular steel frame is built to outlast any other wheelchair

User Benefits

  • Provides therapeutic pressure relief, aiding in the treatment of conditions such as pressure ulcers, pressure injuries, edema, and postural deviations
  • Promotes pressure redistribution and airflow for increased comfort and support
  • Provides exceptional positioning and support, decreasing postural deviations such as head drop, lateral lean, and slumping
  • Decreases the likelihood of a user falling

    • Caregiver Benefits

  • Designed to help you lift and lower patients while reducing the physical strain on the caregiver
  • Aids in treating multiple conditions for varying levels of care with adjustable back recline and height-adjustable arms
  • Accommodates the complex seating needs of your patients with customization options

    • Details
    Specifications
    Tilt Angle

    Up to 38°
    Recline Angle

    Up to 90°
    Weight Capacity

    Up to 350 lbs. (159 kg)
    Seating

    Comfort Tension Seating
    Frame

    16-gauge powder-coated tubular steel frame
    Seat Widths

    16″ (41 cm), 18″ (46 cm), 20″ (51 cm), 22″ (56 cm), 24″ (61 cm), 26″ (66 cm), 28″ (72 cm)
    Seat Depths

    15.5 (40 cm), 17″ (44 cm), 18.5″ (47 cm), 20″ (51 cm)
    Back Heights

    32″ (82 cm), 33.5″ (86 cm), 35″ (89 cm)
    Seat Surface Heights

    Adjustable: 17″ (44 cm), Adjustable: 18″ (46 cm), Adjustable: 19″ (49 cm), Adjustable: 20″ (51 cm),
    Adjustable: 21″ (54 cm), Adjustable: 22″ (56 cm)
    Arms

    Height-adjustable arm supports
    Adjustability

    Removable lateral shoulder supports, split, flip-down foot supports, angle-adjustable footplates
    Wheels

    Front mounted mag wheels: 20”, 22”, 24” (51 cm, 56 cm, 61 cm), Front Total Lock Casters: 5” (13 cm), Rear directional
    lock casters: 5” (13 cm),Rear Mounted Mag Wheels: 20”, 22” (51 cm, 56 cm)
    Brochure Midline-Positioning-Wheelchair.pdf
